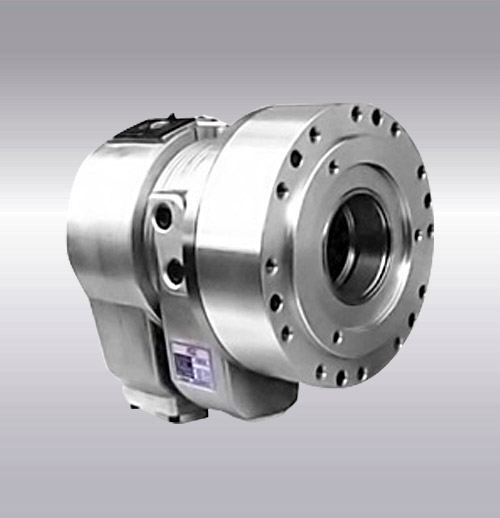

HIGH-SPEED CAVITY ROTARY OIL CYLINDER
ExplainIt is a light weight, large hole rotary oil cylinder, can be used to manufacture long axis components. There is a check valve self-locking mechanism inside it, which prevent the tubes and pressure sources from damaging, so as to ensure the stability of the clamping.
CONTACT

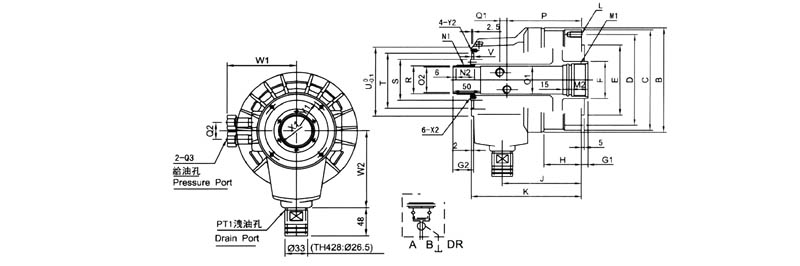

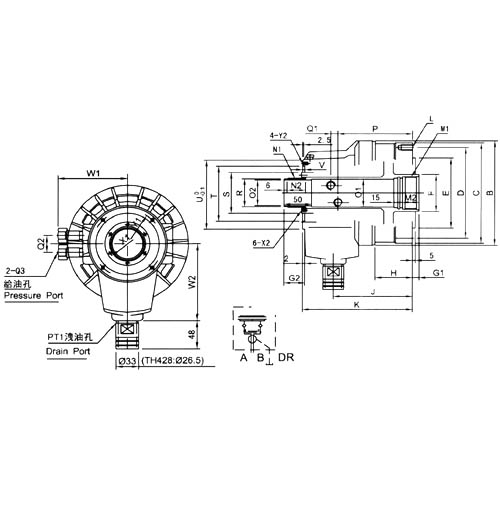

| Specification | A I.D. | B | C | D |
E h7 |
F | G1 | G2 | H | J | K | L | M1 | M2 | N1 | N2 | ||
| Max. | Min. | Max. | Min. | |||||||||||||||
|
KH428YT |
90 |
130 |
120 |
100 |
80 |
40 |
10 |
|
35 |
|
45 |
1275 |
155 |
6-M8×15 |
M33×15 |
25 |
M34×1.5 |
26 |
|
KH536YT |
105 |
150 |
135 |
115 |
100 |
50 |
15 |
|
40 |
|
47.5 |
125.5 |
170.5 |
6-M10×20 |
M42×15 |
25 |
M44×1.5 |
28 |
|
KH646YT |
125 |
169 |
156 |
130 |
100 |
65 |
15 |
|
40 |
|
60 |
135.5 |
193.5 |
12-M10×20 |
M55×2 |
30 |
M52×1.5 |
32 |
|
KH852YT |
150 |
198 |
188 |
170 |
130 |
70 |
20 |
0 |
45 |
25 |
66 |
145 |
198 |
12-M10×20 |
M60×2 |
30 |
M58×1.5 |
34 |
|
KH1075YT |
175 |
225 |
213 |
190 |
160 |
95 |
25 |
|
50 |
|
62 |
166.5 |
231 |
12-M10×22 |
M85×2 |
35 |
M84×2 |
40 |
|
KH1291YT |
205 |
255 |
240 |
215 |
180 |
110 |
30 |
|
55 |
|
64.5 |
180.5 |
250 |
12-M12×24 |
M100×2 |
35 |
M99×2 |
46 |
|
KH1512YT |
250 |
315 |
305 |
275 |
230 |
140 |
30 |
|
55 |
|
68 |
193 |
273 |
12-M16×32 |
Ml30×2 |
45 |
M134×2 |
46 |
| Specification |
01 H8 |
02 H8 |
P | Q1 | Q2 | Q3 |
R g7 |
S | T | U | V | W1 | W2 | X1 | X2 | Y1 | Y2 |
|
KH428YT |
30 |
28 |
101.5 |
11 |
24 |
PT1/4 |
32 |
45 |
65 |
88 |
4 |
72 |
105 |
- |
- |
76 |
M4x7 |
|
KH536YT |
38 |
36 |
119 |
11 |
24 |
PT1/4 |
42 |
5 |
80 |
98 |
4 |
80 |
110 |
- |
- |
83 |
M5x10 |
|
KH646YT |
50 |
46 |
127.5 |
12 |
30 |
PT3/8 |
50 |
70 |
95 |
116 |
4 |
98 |
125 |
62 |
M4×8 |
98 |
M5×10 |
|
KH852YT |
55 |
52 |
135.5 |
12 |
32 |
PT3/8 |
56 |
75 |
100 |
128 |
4 |
100 |
130 |
67 |
M4×8 |
110 |
M6×10 |
|
KH1075YT |
80 |
75 |
153.5 |
17 |
36 |
PT3/8 |
81 |
100 |
125 |
158 |
5 |
115 |
160 |
92 |
M4×8 |
145 |
M6×10 |
|
KH1291YT |
95 |
91 |
165 |
21 |
34 |
PT1/2 |
96 |
120 |
142 |
180 |
5 |
136 |
185 |
110 |
M4×8 |
165 |
M6×10 |
|
KH1512YT |
125 |
120 |
176.5 |
23 |
40 |
PT1/2 |
130 |
160 |
195 |
227 |
6 |
160 |
210 |
171 |
M6×10 |
215 |
M6×10 |
